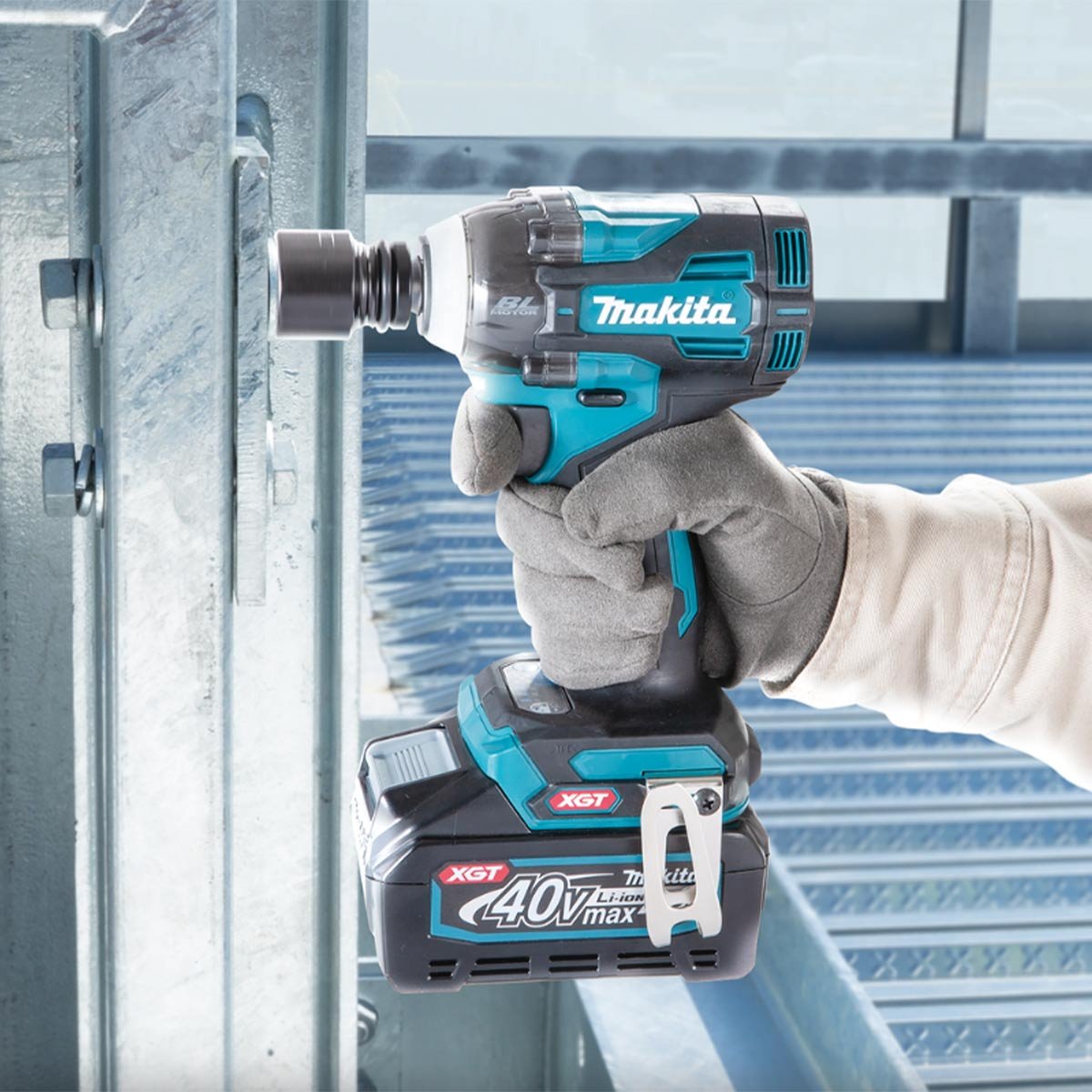

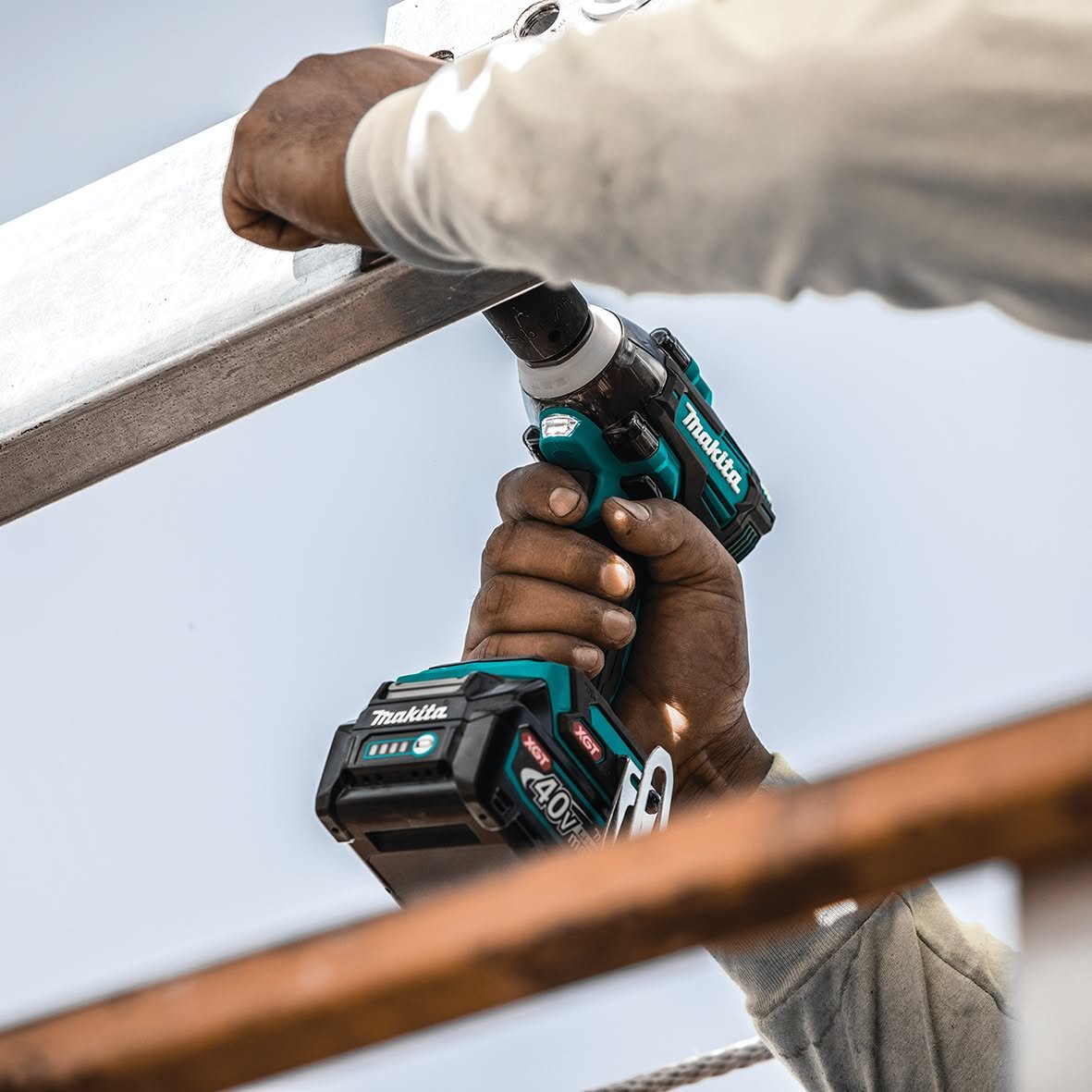

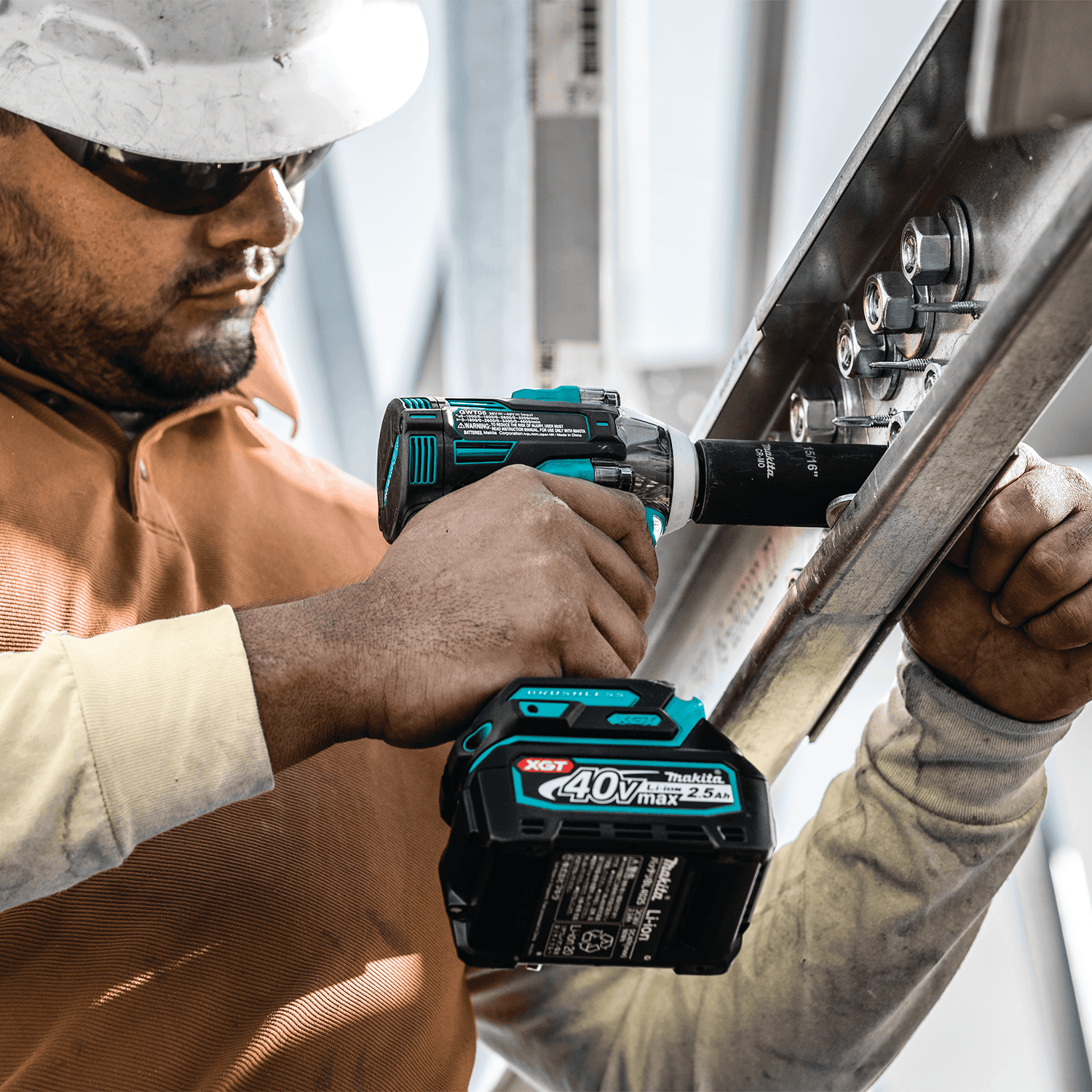

MAKITA 40Vmax 1/2″ Cordless Impact Wrench 630N.m TW005GZ / TW005GD201
The Makita TW005GD201 / TW005GZ Cordless Impact Wrench (12.7mm) (40V) is engineered for professionals who need maximum fastening power with cordless convenience. Powered by Makita’s 40V XGT Li-ion system, it offers strong torque, compact design, and long runtime — perfect for automotive, construction, and maintenance tasks.
FEATURES:
– High Torque Performance: Delivers up to 630Nm of tightening torque and 800Nm of nut-busting torque.
– Compact & Lightweight: Only 170mm long, making it easy to use in tight spaces.
– 4-Stage Impact Power Selection: Adjust speed and impact rate for different applications.

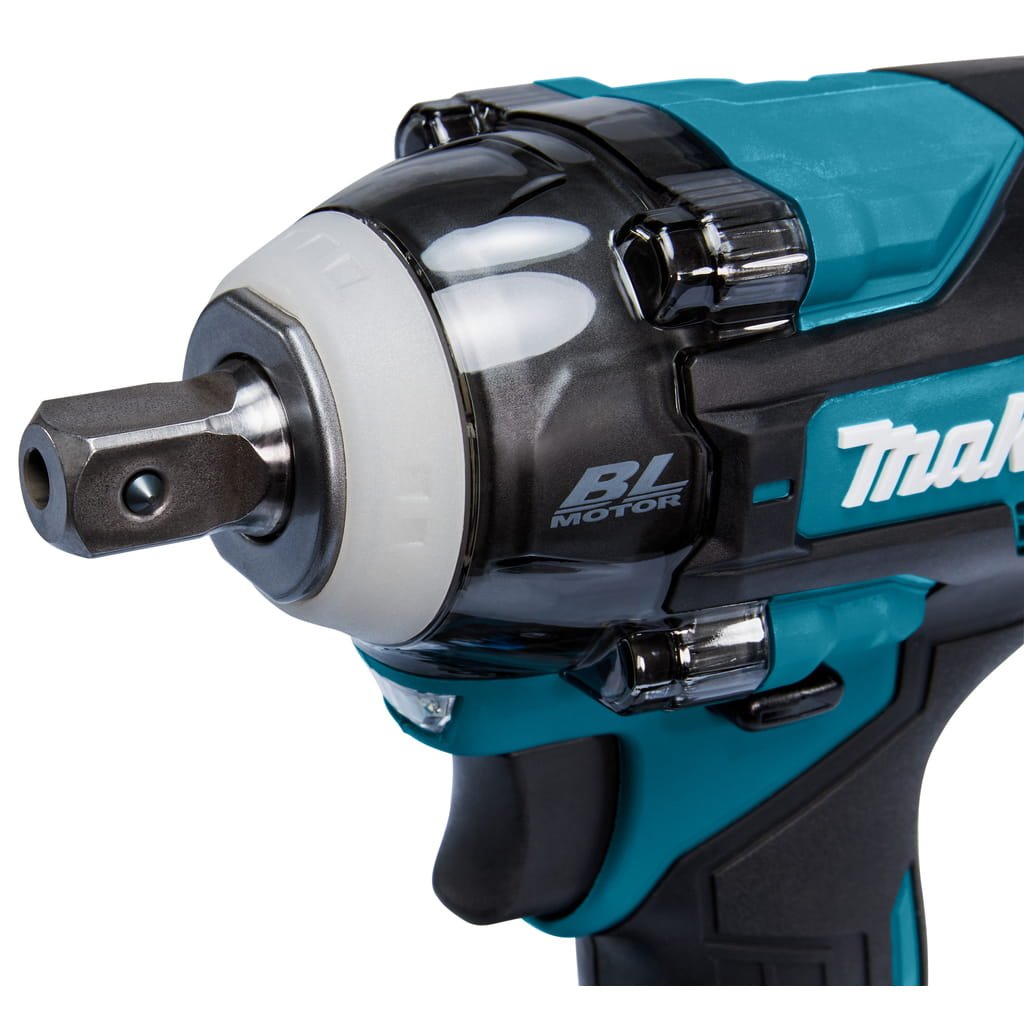

– Brushless Motor: Ensures higher efficiency, longer runtime, and less maintenance.

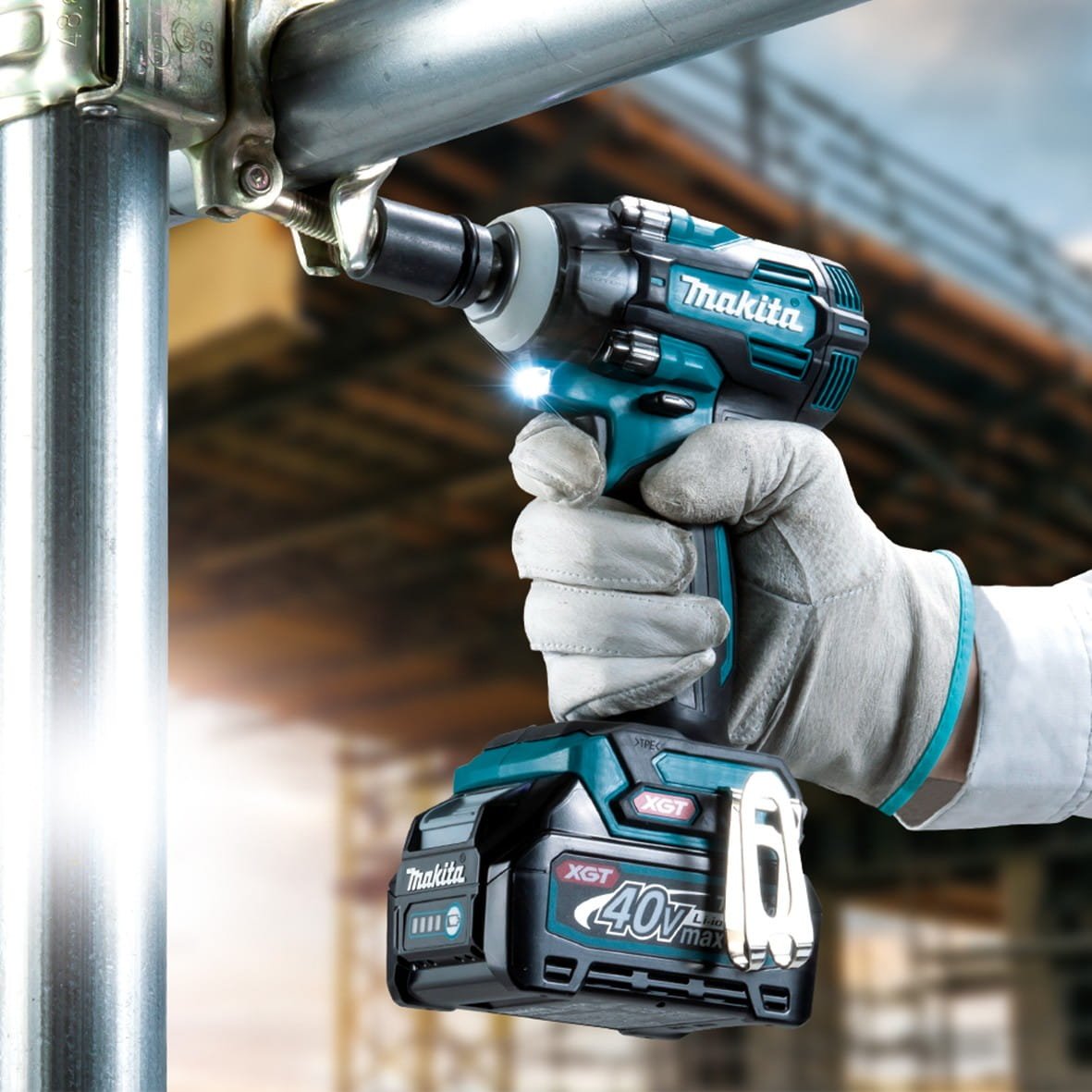

– LED Work Light: Improves visibility in dark or confined areas.
– Auto-Stop Mode: Prevents over-tightening and protects fasteners.
SPECIFICATIONS:
– Fastening Capacities: Standard Bolt: M10 – M20 (3/8 – 3/4″) | High Strength Bolt: M10 – M16 (3/8, 5/8″)

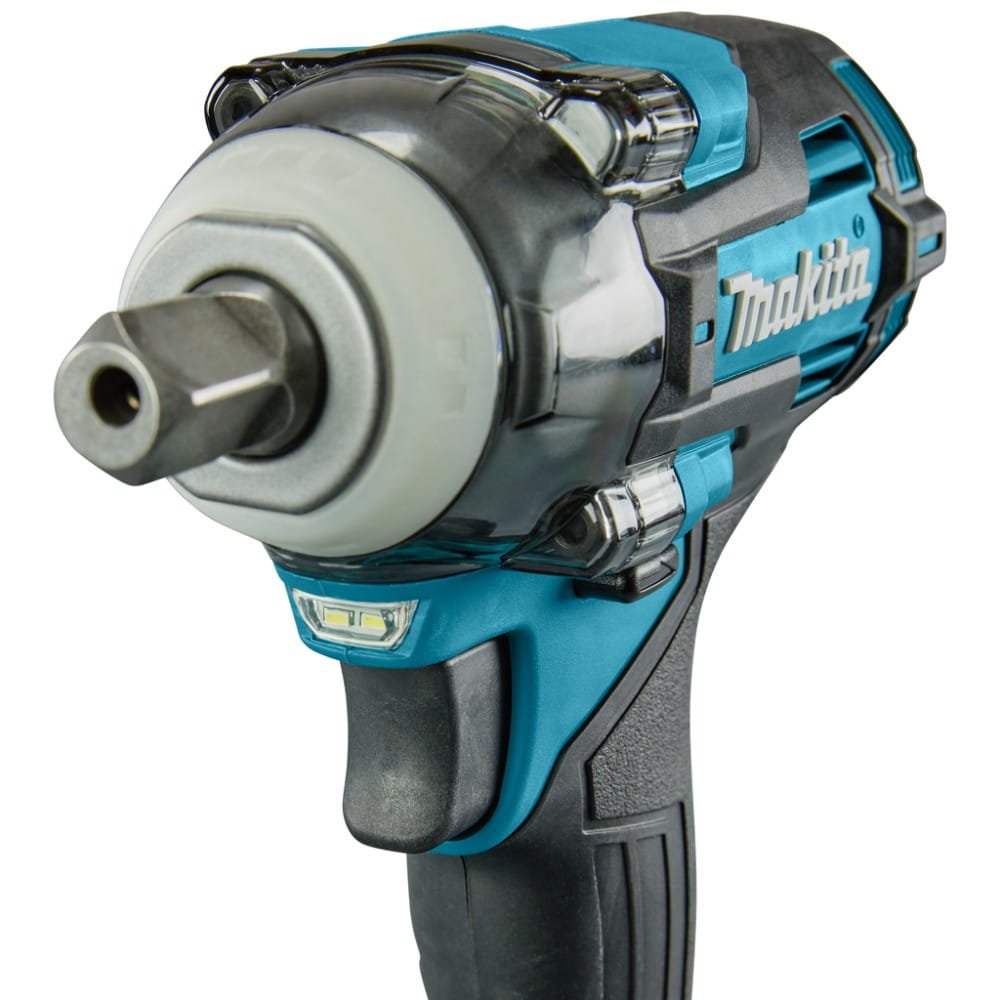

– Square Drive: 12.7 mm (1/2″) Pin Detent
– Nut-Busting Torque: 630 N·m (465 ft. lbs.)
– Impacts Per Minute (IPM): Max: 0 – 4,000 | Hard: 0 – 3,400 | Mid: 0 – 2,600 | Soft: 0 – 1,800
– No Load Speed (RPM): Max: 0 – 3,200 | Hard: 0 – 2,600 | Mid: 0 – 1,800 | Soft: 0 – 1000
– Max Fastening Torque: 350 N·m (260 ft. lbs.)
– Dimensions (L x W x H): 144 x 86 x 248 mm (5-5/8 x 3-3/8 x 9-3/4″)
– Net Weight: 1.9 – 2.2kg (4.2 – 4.9lbs.)
– Work Amount (approx.): 560 pcs with BL4025 x2 | Continuous tightening of M16 bolt
STANDARD EQUIPMENTS:
Belt Clip, Tool Hanger Set (191K57-9)
AVAILABLE OPTION:
GZ – Solo Set: Without Charger & Battery
W/battery & charger Set: 1 x BL4025B 2.5Ah Battery, 1 x DC40RC Standard Charger
GD201 – Full Set: 2 x BL4025B 2.5Ah Battery, 1 x DC40RA Fast Charger
Warranty Info
🔒Makita Warranty Information (Malaysia Only)
✅ Warranty Coverage
-12 Months Warranty on all Makita tools, batteries & chargers
-6 Months Warranty for Heat Guns
-Proof of purchase (invoice with serial number) required
-Repairs or replacement are carried out free of charge at Makita Authorized Service Centres
🚫 Warranty Exclusions
Warranty is void if:
-Tool shows normal wear & tear (e.g. brushes, gears, blades, bits)
-Non-genuine parts, unauthorized repairs, or modifications are used
-Tool is overloaded, misused, or not maintained properly
-Used with abnormal voltage or incompatible generators
-Serial number is missing or tampered
-No proof of purchase is provided
🆓 Extended Warranty (XGT & LXT Tools Only)
✔️ Additional 1-Year Free Extended Warranty
📌 Register online within 30 days of purchase, while this promotion is on-going until further notice
Steps to Register:
-Purchase Makita XGT or LXT tool
-Fill out online registration form
-Upload invoice with serial number
-Submit and wait for email confirmation
📄 Bring both original invoice & online warranty confirmation when visiting Makita Service Centres.
Warranty valid for Makita Malaysia products only.
Makita reserves the right to amend terms without notice.
