MAKITA 18V Cordless Impact Driver 180Nm DTD172Z
Makita has a tradition of innovation in the cordless impact driver category, and the 18V LXT Brushless 4-Speed Impact Driver (DTD172) sets new standards. The DTD172 offers users four speeds, as well as Makita’s exclusive application modes for increased fastening control. The unique application models use the brushless motor’s electronic controls to find the best balance of speed and torque for each application for more efficient fastening. Another precision setting is Tightening Mode (T-mode), which downshifts and reduces rotation and impact speed prior to driving the screw into place, and is engineered to minimize screw thread stripping, screw breakage and damage to work. The DTD172 delivers industry-leading performance in a compact and ergonomic design.
Added features include the one-touch 4-speed power selector button under the chuck, which enables one-handed speed changes, and reverse rotation auto-stop mode which stops rotation and impact when the fastener is loosened adequately to help prevent over loosening and dropped fasteners.
FEATURES:

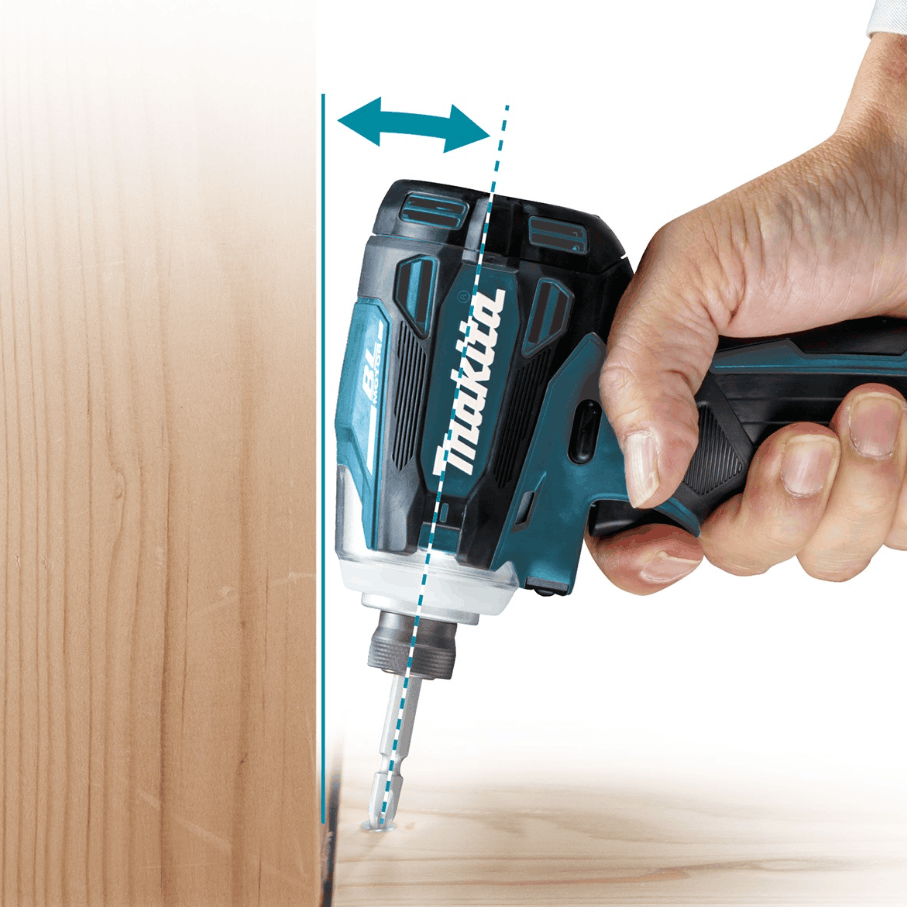

– Slimmer tool body due to the smaller controller circuit

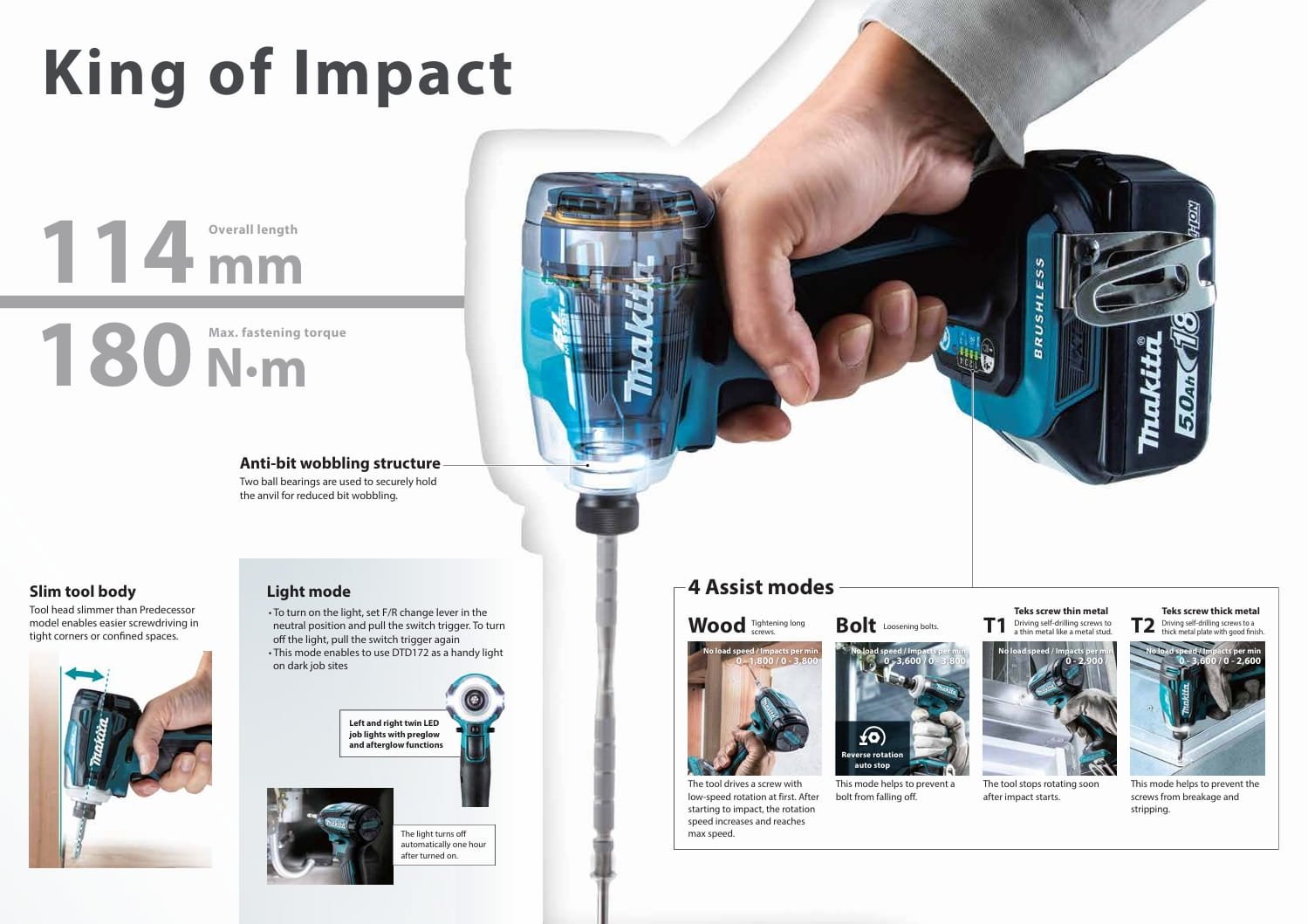

– Anti-bit wobbling structure; Two ball bearings are used to securely hold the anvil for reduced bit wobbling
– One-touch bit installation; Reduced resistance allows for easier bit installation; Designed to hold the bit more securely

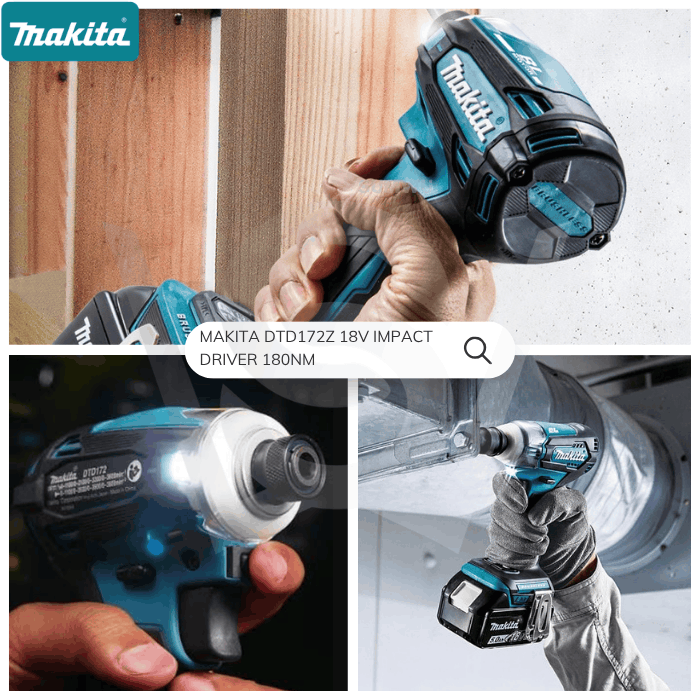

– Twin LED lights on both sides illuminate the work area for increased visibility
– Wood/Bolt/T-Mode (1, 2)/Max/Hard/Medium/Soft Mode for Multiple Applications

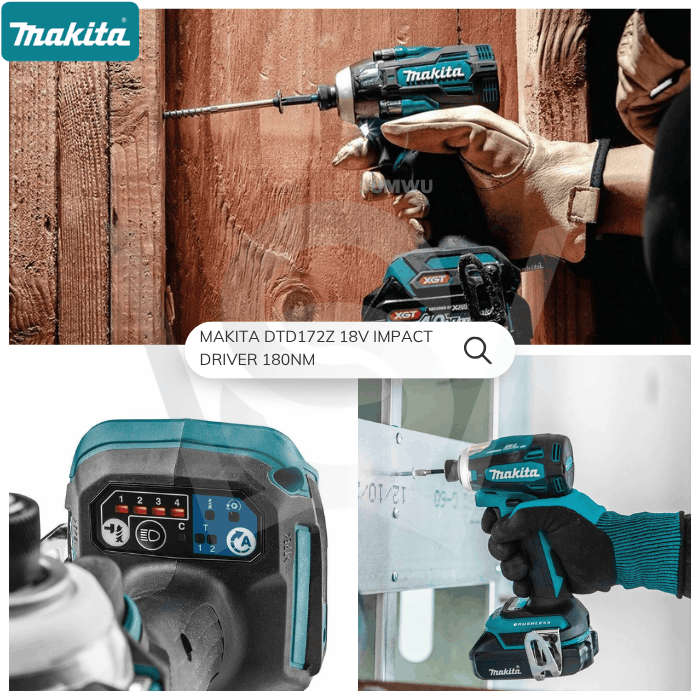

– Redesigned mode selection switch for one-handed mode selection
– Rigid anvil retention for reduced bit wobbling

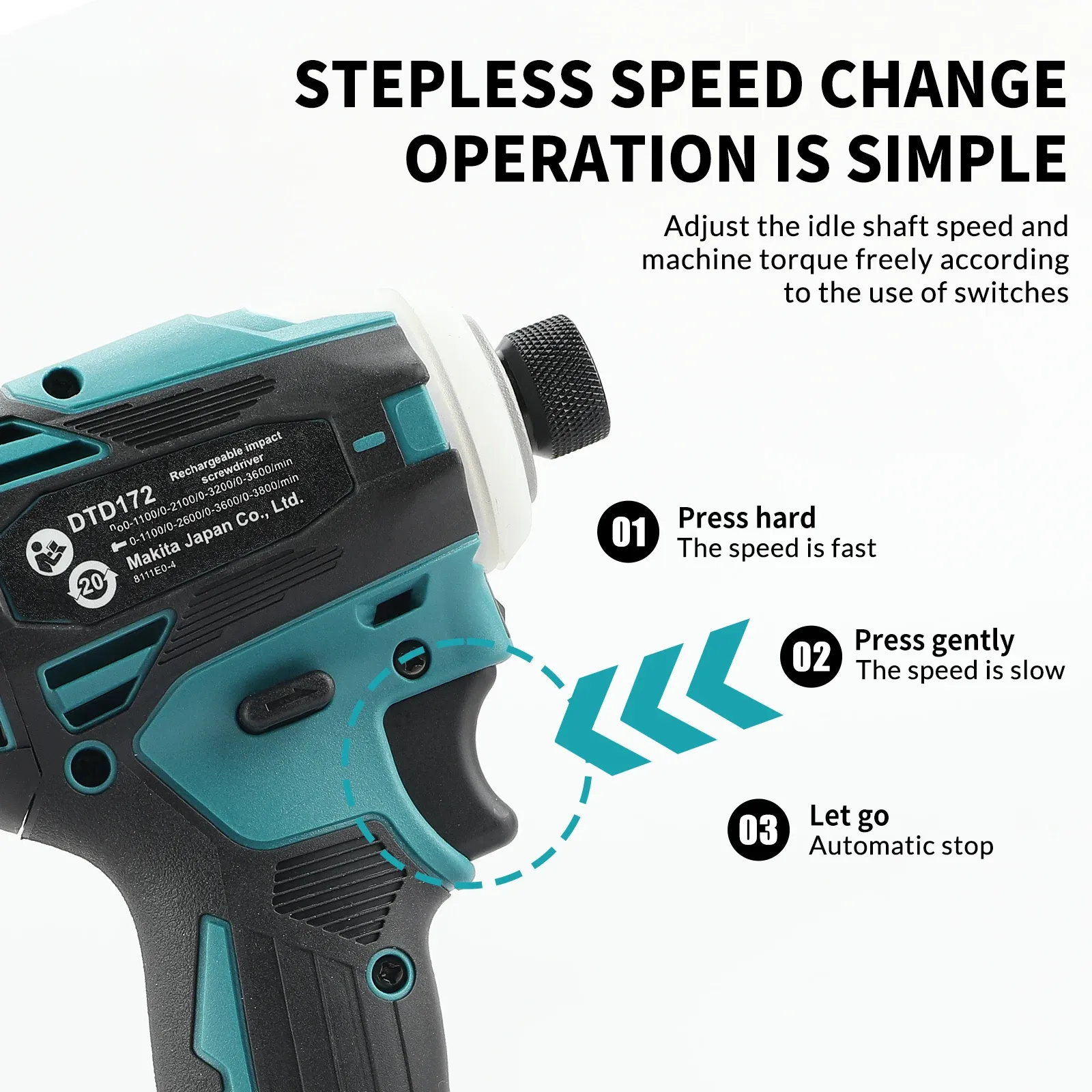

– The power selection switch provides the user with precise fastening control for a wide range of applications
– Lightweight for reduced operator fatigue
– A soft grip provides increased comfort on the job
SPECIFICATIONS:
– Capacity: Machine Screw: M4 – M8 (5/32″ – 5/16″) | Standard Bolt: M5 – M16 (3/16″ – 5/8″) | High Strength Bolt: M5 – M14 (3/16″ – 9/16″) | Coarse Thread (in length): 22 – 125 mm (7/8″ – 4-7/8″) | Wood (Auger Bit): 24 mm (15/16″)
– Hex Shank: 6.35 mm (1/4″)
– Impacts Per Minute (IPM): Max: 0 – 3,800 | Hard: 3,600 | Mid: 2,600 | Soft: 1,100 | Wood: 3,800 | Bolt: 3,800 | T (2): 2,600
– Max Fastening Torque: 180 N·m (1,590 in.lbs.)
– No Load Speed (RPM): Max: 0 – 3,600 | Hard: 3,200 | Mid: 2,100 | Soft: 1,100 | Wood: 1,800 | Bolt: 3,600 | T (1): 2,900 | T (2): 3,600
– Dimensions (L x W x H): 114 x 81 x 236 mm
– Net Weight: 1.2 – 1.5 kg
– Work Amount (approx.): 970 pcs with BL1860B – Coarse thread screw 65mm
STANDARD EQUIPMENTS:
Phillips Bit, Belt Clip
AVAILABLE OPTION:
Z – Solo Set: Without Charger, Battery & Carrying Case
W/Battery & Charger Set: (LXT Basic) 1x DCB18WA Standard Charger, 1x BLB182 2.0Ah Battery
RTJ – Full Set: 1x DC18RC Rapid Charger, 2x BL1850B 5.0Ah Battery, 1x Makpac Connector Box
APPLICATION:
Suitable for:
– Screw fastening
– Cabinet installation
– Carpentry work
– Electrical installation
– Construction projects
– Maintenance servicing
– Timber framing
– Furniture assembly
– Interior renovation
– Workshop fabrication
Suitable materials:
– Wood
– Timber
– Steel
– Metal framing
– Aluminium
– Composite materials
