DEWALT DCD1007H1T-B1 20V MAX XR 3-Speed Hammer Drill Premium POWERSTACK Kit (DCBP520)
The DEWALT DCD1007H1T-B1 is a premium 20V MAX XR brushless 3-speed hammer drill designed for demanding professional drilling, fastening and construction applications. It combines high torque, a 3-speed all-metal transmission, brushless motor technology and DEWALT’s ANTI-ROTATION system in a compact professional cordless drill platform.

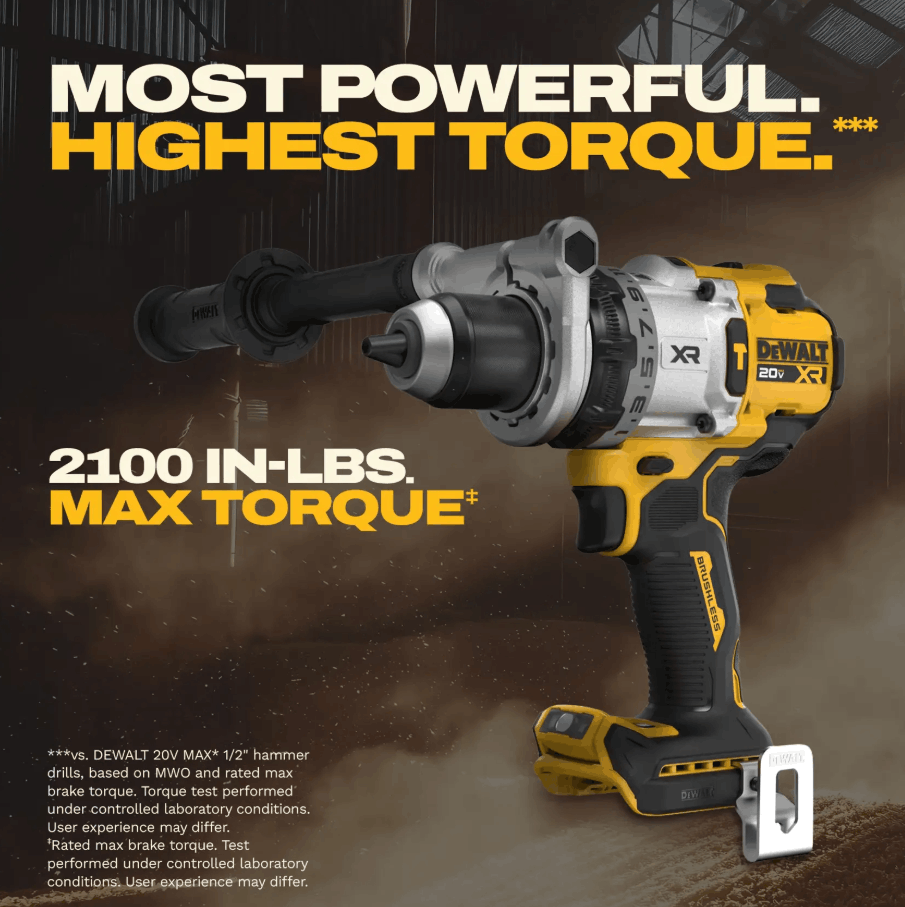

The DCD1007 is DEWALT’s high-performance 20V MAX 1/2-inch hammer drill, designed for drilling in wood, metal and concrete/masonry. DEWALT specifies up to 2,100 in-lbs of maximum torque, while the DCD1007H1T-B1 Malaysian kit is commonly specified at up to 169 Nm maximum torque. Actual performance can vary according to application, material, drill bit and battery condition.
The DCD1007H1T-B1 Premium POWERSTACK Kit includes a 20V 5.0Ah POWERSTACK battery and charger, making it suitable for professionals who want a ready-to-use DEWALT cordless hammer drill rather than a tool-only package. Malaysian listings also specify a DCD1104 charger, side handle, belt hook and TSTAK case with the kit.
Features:
– Dewalt Most Powerful 20V MAX* Hammer Drill** : Take on a wide range of demanding applications with our most powerful hammer drill.
– Help Maximize Control : Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive.
– The red LED indicator illuminates when the ANTI-ROTATION System is engaged.
– Advanced Maneuverability : Access and maneuver in tight areas with the shortest length DEWALT® premium 3-speed drill.
Specifications:
Model : DCD1007H1T
Voltage : 20V MAX
Battery : 1 X POWERSTACK 5.0AH (DCBP520)
Charger : Yes (DCD1104)
No load speed Drill, Driver / Impact drill
Speed 1 drill / hammer min-1 : 0 – 450 / 0 – 500
Speed 2 drill / hammer min-1 : 0 – 1200 / 0 – 1300
Speed 3 drill / hammer min-1 : 0 – 2000 / 0 – 2250
Impact rate
Speed 1 min-1 : 0 – 8500
Speed 2 min-1 : 0 – 22100
Speed 3 min-1 : 0 – 38250
Max. torque : 169 Nm
Chuck capacity mm : 1.5 – 13
Maximum drilling capacity
WOOD
Auger : 38 mm
Paddle : 38 mm
Twist : 25.4 mm
Self-feed : 66 mm
Hole saw : 127 mm
SHEET METAL
Twist : 12.7 mm
Hole saw : 101 mm
Step bit : #9 ( 28.5 mm )
PLATE STEEL
Carbide tipped hole cutter : 25.4 mm
MASONRY
Carbide percussion bit : 12.7 mm
Weight ( without battery pack ) : 1.87 kg
What in the box:
1 x DCD1007H1T
1X POWERSTACK 5.0AH battery
1X DCD1104 Charger
1 x Side handle
1 x Instruction manual
1 x Magnetic
1 x Belt hook
1 x Tstak case
Why Choose the DEWALT DCD1007H1T-B1?
The DCD1007H1T-B1 is designed for users who need a powerful cordless hammer drill for demanding applications while retaining the flexibility of the DEWALT 20V MAX battery platform.

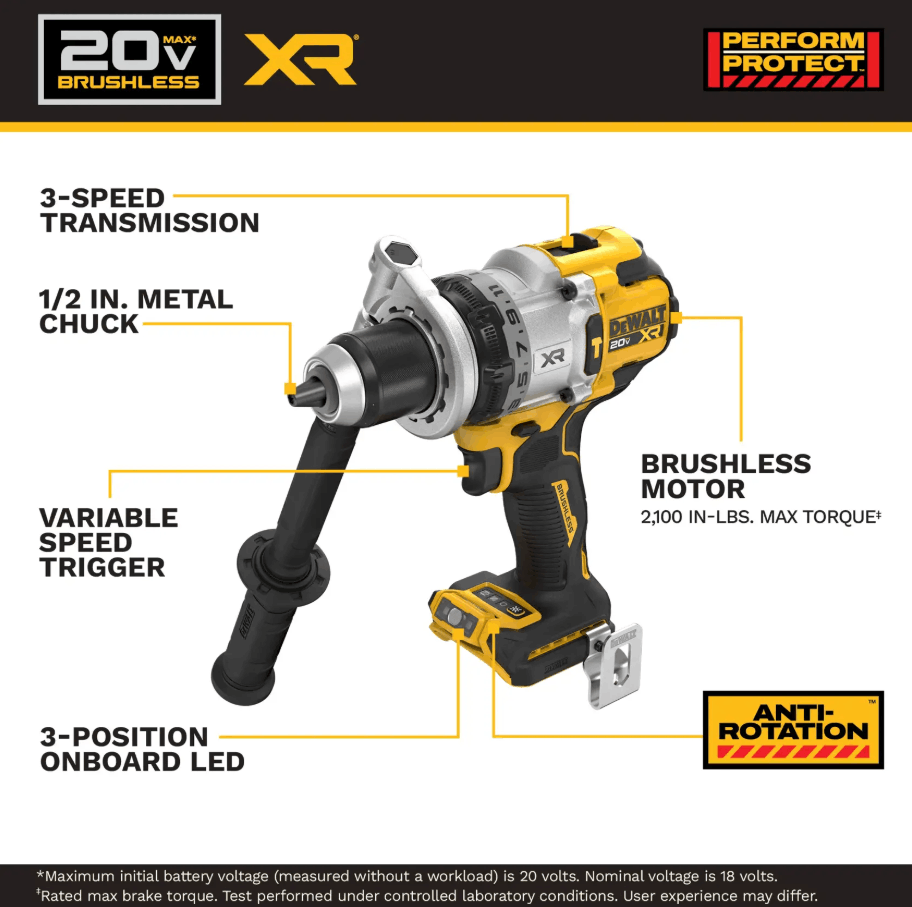

Key highlights include:

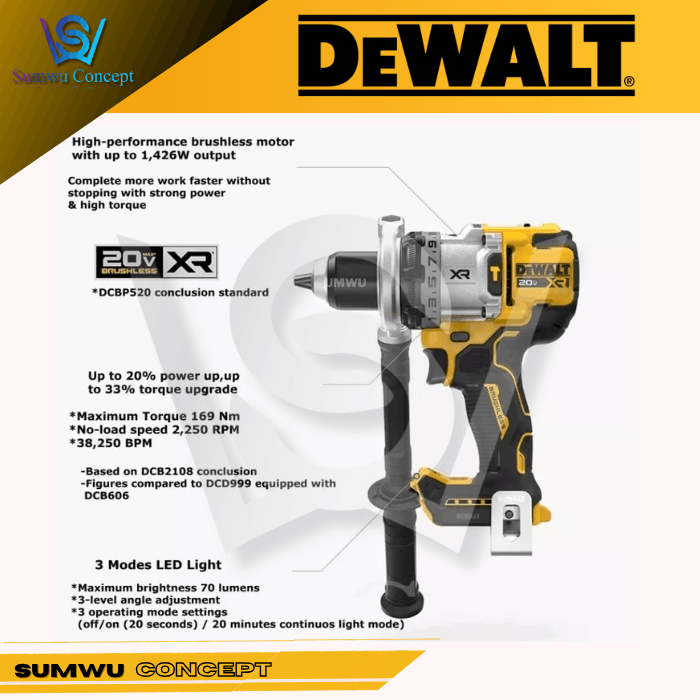

20V MAX XR brushless motor for professional cordless drilling and fastening applications
3-speed high-performance transmission for selecting an appropriate speed range for different applications
Up to 169 Nm maximum torque for the DCD1007H1T-B1 specification
1/2-inch / 13mm ratcheting metal chuck for strong bit retention
Hammer drill mode for drilling into masonry and concrete
Drill and driver functions for wood, metal and general fastening applications
ANTI-ROTATION system designed to detect excessive rotational movement and shut down the tool to help improve control
All-metal transmission designed for demanding jobsite applications
3-position pivoting LED work light for improved visibility in dim work areas
20V 5.0Ah POWERSTACK battery included in this H1T-B1 kit
DEWALT DCD1104 charger included
TSTAK case included for storage and transport
DEWALT’s official specifications identify the DCD1007 as a brushless 20V MAX XR 1/2-inch 3-speed hammer drill and highlight its ANTI-ROTATION system, all-metal transmission, 3-position LED and high torque capability.
DEWALT DCD1007H1T-B1 Applications
The DEWALT DCD1007H1T-B1 is suitable for a wide range of professional and heavy-duty applications, including:
Construction and renovation
General building work

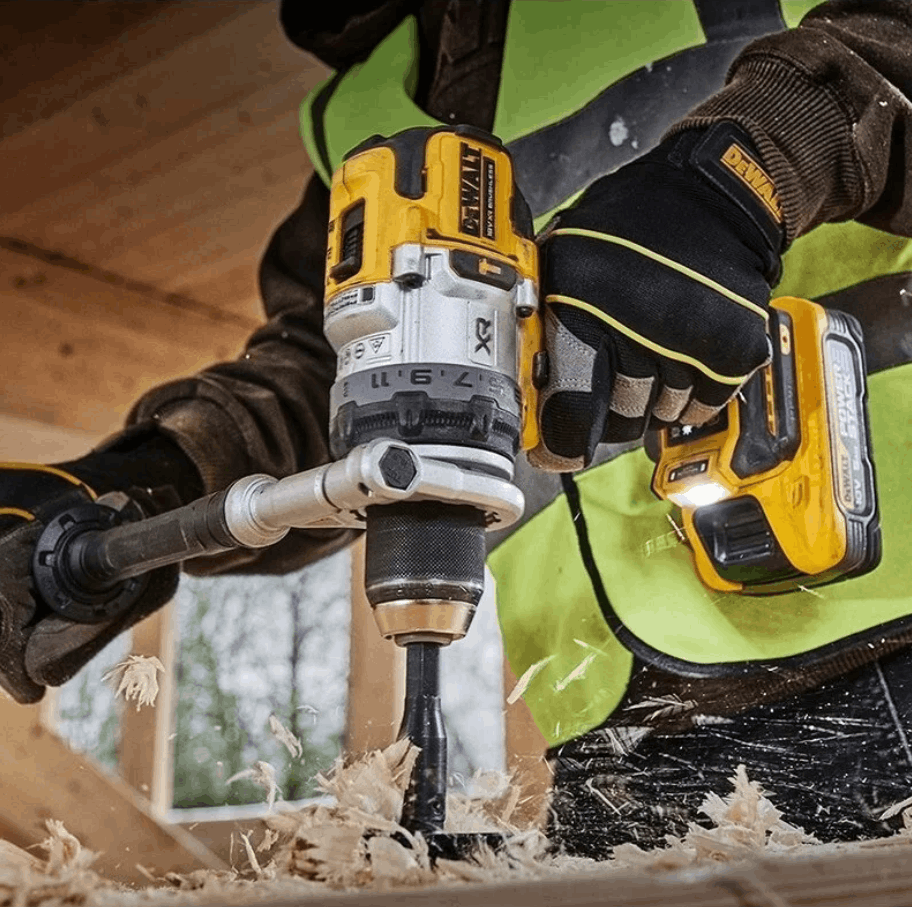

Drilling large holes in timber
Metal drilling
Concrete and masonry drilling
Electrical installation
Plumbing installation
HVAC installation
Mechanical and maintenance work
Professional workshop applications
General contractor and jobsite use
For concrete and masonry drilling, use the appropriate carbide-tipped masonry bit and select the correct hammer-drilling setting and speed for the application.

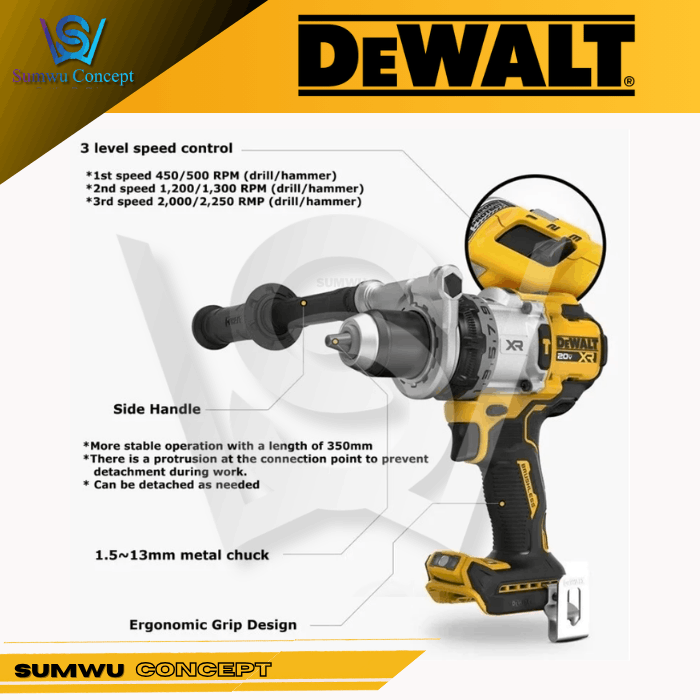

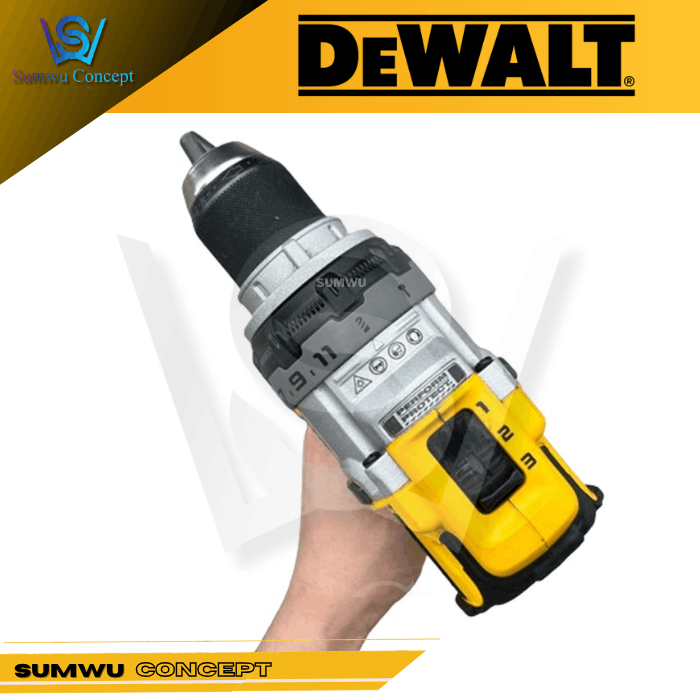

DCD1007H1T-B1 3-Speed Performance
The DCD1007H1T-B1 features a 3-speed mechanical transmission:
Speed 1: approximately 0–450 RPM
Speed 2: approximately 0–1,200 RPM
Speed 3: approximately 0–2,000 RPM
Hammer-mode impact rates are specified at approximately 0–8,500 / 0–22,100 / 0–38,250 BPM across the three speed ranges.
The 3-speed design allows users to select a suitable operating range according to drilling diameter, material and application instead of relying on a single speed range.
DCD1007H1T-B1 Drilling Capacity
According to the Malaysian specification for this model:
Application Maximum Capacity
Wood – Auger 38 mm
Wood – Paddle 38 mm
Wood – Twist Drill 25.4 mm
Wood – Self Feed 66 mm
Wood – Hole Saw 127 mm
Sheet Metal – Twist Drill 12.7 mm
Sheet Metal – Hole Saw 101 mm
Sheet Metal – Step Bit 28.5 mm
Plate Steel – Carbide Hole Cutter 25.4 mm
Masonry – Carbide Percussion Bit 12.7 mm
Chuck Capacity 1.5–13 mm
Actual drilling capacity and performance depend on the drill bit, material, drilling technique, battery condition and application.

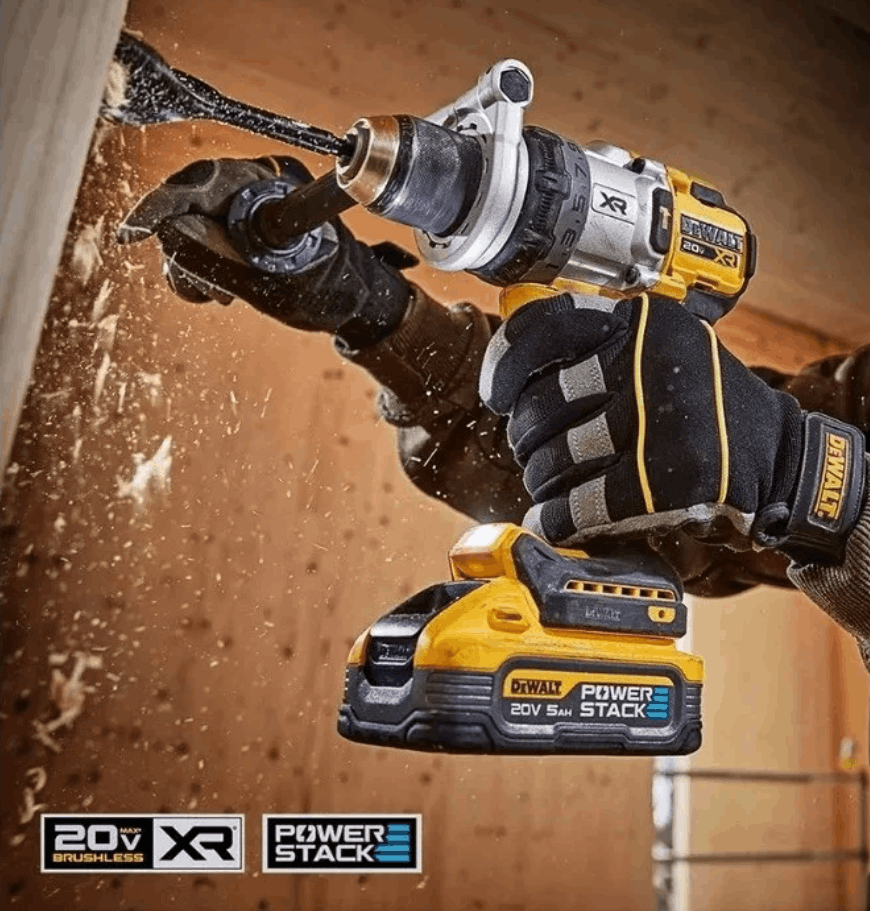

DEWALT POWERSTACK Battery Kit
The DCD1007H1T-B1 kit includes a DEWALT 20V 5.0Ah POWERSTACK battery, providing a ready-to-use configuration for professional users.
The POWERSTACK battery is part of the DEWALT 20V MAX cordless platform, allowing users to build a compatible cordless tool system around DEWALT 20V MAX tools, batteries and chargers.
Who Is the DEWALT DCD1007H1T-B1 For?
The DCD1007H1T-B1 is particularly suitable for:
– Professional contractors who require a high-performance cordless hammer drill for regular jobsite use.
– Electricians and plumbers who need a powerful cordless drill for installation work involving wood, metal and masonry.
– Maintenance technicians who require a versatile drill/driver/hammer drill for workshop and maintenance applications.
– Heavy-duty DIY users who want a premium DEWALT cordless hammer drill rather than an entry-level model.
– Existing DEWALT 20V MAX users who want to add a high-performance 3-speed hammer drill to their cordless tool system.
DEWALT DCD1007H1T-B1 Frequently Asked Questions:
What is the DEWALT DCD1007H1T-B1?
The DCD1007H1T-B1 is a 20V MAX XR brushless 3-speed cordless hammer drill kit with a 5.0Ah POWERSTACK battery and charger, designed for demanding drilling and fastening applications.
How much torque does the DEWALT DCD1007H1T-B1 have?
The DCD1007H1T-B1 is specified at up to 169 Nm maximum torque in Malaysian product specifications. DEWALT’s official US DCD1007 specifications state 2,100 in-lbs of maximum torque under its specified test conditions. These figures should not be directly compared without considering the respective measurement methodology.
Is the DCD1007H1T-B1 brushless?
Yes. The DCD1007 is a 20V MAX XR brushless hammer drill.
Is the DCD1007H1T-B1 a 3-speed drill?
Yes. It uses a 3-speed high-performance transmission, with approximately 0–450, 0–1,200 and 0–2,000 RPM in drill/driver mode.
Can the DEWALT DCD1007H1T-B1 drill concrete?
Yes. It has a hammer-drilling mode designed for masonry and concrete applications. The Malaysian specification lists a maximum masonry drilling capacity of 12.7 mm when using a carbide percussion bit.
What battery comes with the DCD1007H1T-B1?
The DCD1007H1T-B1 kit includes one 20V 5.0Ah DEWALT POWERSTACK battery. The Malaysian kit specification identifies the battery as DCBP520.
Is the DCD1007H1T-B1 suitable for professional use?
The DCD1007 is designed as a high-performance professional 20V MAX XR hammer drill for demanding drilling and fastening applications. Its features include an all-metal transmission, brushless motor, 3-speed transmission and ANTI-ROTATION system.
What is included with the DEWALT DCD1007H1T-B1 kit?
The Malaysian DCD1007H1T-B1 package includes the DCD1007 hammer drill, 20V 5.0Ah POWERSTACK battery, DCD1104 charger, side handle, belt hook and TSTAK case. Package contents may vary by market or seller, so customers should confirm the current package before purchase.
